卜申 (SxS)
优点:


描述:
产品规格(单位: MM)

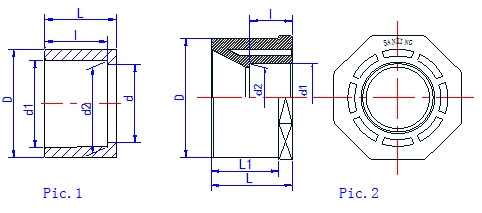

公称尺寸 外径 承插口类型 承插口尺寸 Pic.
D(MM) d1 d2 I d L1 L

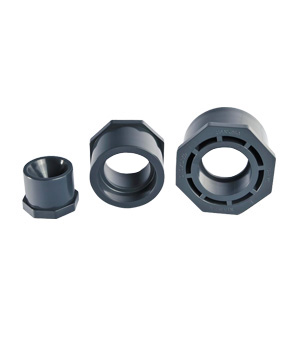

DN20*DN15 25.0 20.3 20.1 16.0 16.0 ―― 20.0 Pic.1
DN25*DN20 32.0 25.3 25.1 20.0 21.0 24.0
DN32*DN25 40.0 32.3 32.1 23.0 28.0 28.0
DN40*DN32 50.0 40.3 40.1 28.0 36.0 32.0
DN50*DN40 63.0 50.3 50.1 32.0 46.0 38.0
DN63*DN50 75.0 63.3 63.1 38.0 57.0 42.0
DN80*DN50 90.0 63.3 63.1 38.0 57.0 51.0 61.0 Pic.2
DN80*DN65 90.0 75.3 75.1 45.0 71.0 51.0 61.0
DN100*DN50 110.0 63.3 63.1 38.0 57.0 61.0 73.0
DN100*DN80 110.0 90.3 90.1 51.0 86.0 61.0 73.0
DN125*DN50 140.0 63.3 63.1 39.0 50.0 76.0 91.0
DN125*DN80 140.0 90.3 90.1 51.0 80.0 76.0 91.0
DN125*DN100 140.0 110.4 110.1 61.0 100.0 76.0 91.0
DN150*DN80 160.0 90.3 90.1 51.0 80.0 86.0 101.0
DN150*DN100 160.0 110.4 110.1 61.0 100.0 86.0 101.0
DN150*DN125 160.0 140.5 140.2 76.0 125.0 86.0 101.0
DN200*DN100 225.0 110.4 110.1 61.0 100.0 119.0 137.0
DN200*DN125 225.0 140.5 140.2 76.0 125.0 119.0 137.0
DN200*DN150 225.0 160.5 160.2 86.0 150.0 119.0 137.0
DN280*DN100 280.0 110.4 110.1 61.0 100.0 146.0 166.0
DN280*DN150 280.0 160.5 160.2 86.0 150.0 146.0 166.0
DN280*DN200 280.0 225.7 225.3 119.0 200.0 146.0 166.0
DN300*DN150 315.0 160.73 159.98 86.0 150.0 163.5 183.5
DN300*DN200 315.0 225.96 225.0 118.5 200.0 163.5 183.5
DN300*DN250 315.0 281.5 280.5 146.0 250.0 163.5 183.5
