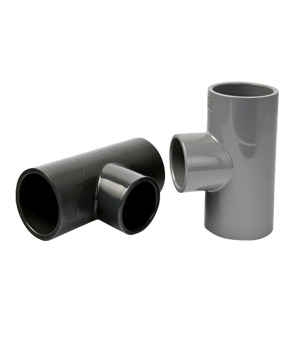

异三通 (SxSxS)
优点：
描述：
描述：
产品规格（单位: MM）
| 公称尺寸 | 外径 | 承插口类型 | 承插口尺寸 | |||||||
| D（MM） | d1 | d2 | I1 | d3 | d4 | I2 | d | d0 | L | |
| 3/4'*3/4'*1/2' | 35.00 | 26.87 | 26.57 | 27.00 | 21.54 | 21.23 | 24.00 | 22.00 | 16.00 | 78.00 |
| 1'*1'*1/2' | 44.00 | 33.65 | 33.27 | 30.00 | 21.54 | 21.23 | 24.00 | 30.00 | 16.00 | 90.00 |
| 1'*1'*3/4' | 44.00 | 33.65 | 33.27 | 30.00 | 26.87 | 26.57 | 27.00 | 30.00 | 22.00 | 90.00 |
| 1¼'*1¼'*1/2' | 54.00 | 42.42 | 42.04 | 34.00 | 21.54 | 21.23 | 24.00 | 38.00 | 16.00 | 106.00 |
| 1¼'*1¼'*3/4' | 54.00 | 42.42 | 42.04 | 34.00 | 26.87 | 26.57 | 27.00 | 38.00 | 22.00 | 106.00 |
| 1¼'*1¼'*1' | 54.00 | 42.42 | 42.04 | 34.00 | 33.65 | 33.27 | 30.00 | 38.00 | 30.00 | 106.00 |
| 1½'*1½'*1/2' | 60.00 | 48.56 | 48.11 | 37.00 | 21.54 | 21.23 | 24.00 | 43.00 | 16.00 | 120.00 |
| 1½'*1½'*3/4 | 60.00 | 48.56 | 48.11 | 37.00 | 26.87 | 26.57 | 27.00 | 43.00 | 22.00 | 120.00 |
| 1½'*1½'*1 | 60.00 | 48.56 | 48.11 | 37.00 | 33.65 | 33.27 | 30.00 | 43.00 | 30.00 | 120.00 |
| 1½'*1½'*1¼' | 60.00 | 48.56 | 48.11 | 37.00 | 42.42 | 42.04 | 34.00 | 43.00 | 38.00 | 120.00 |
| 2'*2'*1/2' | 73.00 | 60.63 | 60.17 | 41.00 | 21.54 | 21.23 | 24.00 | 54.00 | 16.00 | 135.00 |
| 2'*2'*3/4' | 73.00 | 60.63 | 60.17 | 41.00 | 26.87 | 26.57 | 27.00 | 54.00 | 22.00 | 135.00 |
| 2'*2'*1' | 73.00 | 60.63 | 60.17 | 41.00 | 33.65 | 33.27 | 30.00 | 54.00 | 30.00 | 135.00 |
| 2'*2'*1¼' | 73.00 | 60.63 | 60.17 | 41.00 | 42.42 | 42.04 | 34.00 | 54.00 | 38.00 | 135.00 |
| 2'*2'*1½' | 73.00 | 60.63 | 60.17 | 41.00 | 48.56 | 48.11 | 37.00 | 54.00 | 43.00 | 135.00 |
| 2½'*2½'*1/2' | 88.00 | 73.38 | 72.85 | 46.50 | 21.54 | 21.23 | 24.00 | 67.00 | 16.00 | 159.00 |
| 2½'*2½'*3/4' | 88.00 | 73.38 | 72.85 | 46.50 | 26.87 | 26.57 | 27.00 | 67.00 | 22.00 | 159.00 |
| 2½'*2½'*1' | 88.00 | 73.38 | 72.85 | 46.50 | 33.65 | 33.27 | 30.00 | 67.00 | 30.00 | 159.00 |
| 2½'*2½'*1¼' | 88.00 | 73.38 | 72.85 | 46.50 | 42.42 | 42.04 | 34.00 | 67.00 | 38.00 | 159.00 |
| 2½'*2½'*1½' | 88.00 | 73.38 | 72.85 | 46.50 | 48.56 | 48.11 | 37.00 | 67.00 | 43.00 | 159.00 |
| 2½'*2½'*2' | 88.00 | 73.38 | 72.85 | 46.50 | 60.63 | 60.17 | 41.00 | 67.00 | 54.00 | 159.00 |
| 3'*3'*1' | 105.50 | 89.31 | 88.70 | 50.00 | 33.65 | 33.27 | 30.00 | 82.00 | 30.00 | 179.00 |
| 3'*3'*1¼' | 105.50 | 89.31 | 88.70 | 50.00 | 42.42 | 42.04 | 34.00 | 82.00 | 38.00 | 179.00 |
| 3'*3'*1½' | 105.50 | 89.31 | 88.70 | 50.00 | 48.56 | 48.11 | 37.00 | 82.00 | 43.00 | 179.00 |
| 3'*3'*2' | 105.50 | 89.31 | 88.70 | 50.00 | 60.63 | 60.17 | 41.00 | 82.00 | 54.00 | 179.00 |
| 3'*3'*2½' | 105.50 | 89.31 | 88.70 | 50.00 | 73.38 | 72.85 | 46.50 | 82.00 | 67.00 | 179.00 |
| 4'*4'*1' | 133.00 | 114.76 | 114.10 | 60.00 | 33.65 | 33.27 | 30.00 | 106.00 | 30.00 | 214.00 |
| 4'*4'*1¼' | 133.00 | 114.76 | 114.10 | 60.00 | 42.42 | 42.04 | 34.00 | 106.00 | 38.00 | 214.00 |
| 4'*4'*1½' | 133.00 | 114.76 | 114.10 | 60.00 | 48.56 | 48.11 | 37.00 | 106.00 | 43.00 | 214.00 |
| 4'*4'*2' | 133.00 | 114.76 | 114.10 | 60.00 | 60.63 | 60.17 | 41.00 | 106.00 | 54.00 | 214.00 |
| 4'*4'*2½' | 133.00 | 114.76 | 114.10 | 60.00 | 73.38 | 72.85 | 46.50 | 106.00 | 67.00 | 214.00 |
| 4'*4'*3' | 133.00 | 114.76 | 114.10 | 60.00 | 89.31 | 88.70 | 50.00 | 106.00 | 82.00 | 214.00 |
| 6'*6'*1' | 191.00 | 168.83 | 168.00 | 79.00 | 33.65 | 33.27 | 30.00 | 158.00 | 30.00 | 311.00 |
| 6'*6'*2' | 191.00 | 168.83 | 168.00 | 79.00 | 60.63 | 60.17 | 39.00 | 158.00 | 54.00 | 311.00 |
| 6'*6'*3' | 191.00 | 168.83 | 168.00 | 79.00 | 89.31 | 88.71 | 50.00 | 158.00 | 82.00 | 311.00 |
| 6'*6'*4' | 191.00 | 168.83 | 168.00 | 79.00 | 114.76 | 114.10 | 60.00 | 158.00 | 106.00 | 311.00 |
| 6'*6'*5' | 191.00 | 168.83 | 168.00 | 79.00 | 141.81 | 141.00 | 68.00 | 158.00 | 133.00 | 311.00 |
