Flange True Union Swing Check Valve
ADVANTAGES：
1) Material:UPVC,CPVC,PPH,PVDF
2) Size:1/2""-2"";20mm-63mm;DN15-DN50
3) Standard:ANSI,DIN,JIS,CNS
4) Joint End:Socket or Threaded(NPT,PT,BSPF),Fusion,Welding
5) Working Pressure:150 PSI
6) Operating Temperature:UPVC(5~55℃);CPVC&PPH(5~90℃);PVDF(-20~120℃)
7) Valve body color:UPVC(dark gray/white),CPVC(light gray),PP(light yellow),PVDF(ivory)
8) Minimum waterstop pressure≥0.03kg
DESCRIPTION：
1) Material:PVC,CPVC,PP
2) Size:1/2''-2'';20mm-63mm;DN15-DN50
3) Standard:ANSI,DIN,JIS,CNS
4) Joint End:Flanges
5) Working Pressure:150 PSI
6) Operating Temperature:PVC(0~55℃);CPVC&PP(0~95℃)
7) Valve body color:PVC(dark gray),CPVC(light gray),PP(light yellow)
1) Material:UPVC,CPVC,PPH,PVDF
2) Size:1/2""-2"";20mm-63mm;DN15-DN50
3) Standard:ANSI,DIN,JIS,CNS
4) Joint End:Socket or Threaded(NPT,PT,BSPF),Fusion,Welding
5) Working Pressure:150 PSI
6) Operating Temperature:UPVC(5~55℃);CPVC&PPH(5~90℃);PVDF(-20~120℃)
7) Valve body color:UPVC(dark gray/white),CPVC(light gray),PP(light yellow),PVDF(ivory)
8) Minimum waterstop pressure≥0.03kg
DESCRIPTION：
1) Material:PVC,CPVC,PP
2) Size:1/2''-2'';20mm-63mm;DN15-DN50
3) Standard:ANSI,DIN,JIS,CNS
4) Joint End:Flanges
5) Working Pressure:150 PSI
6) Operating Temperature:PVC(0~55℃);CPVC&PP(0~95℃)
7) Valve body color:PVC(dark gray),CPVC(light gray),PP(light yellow)

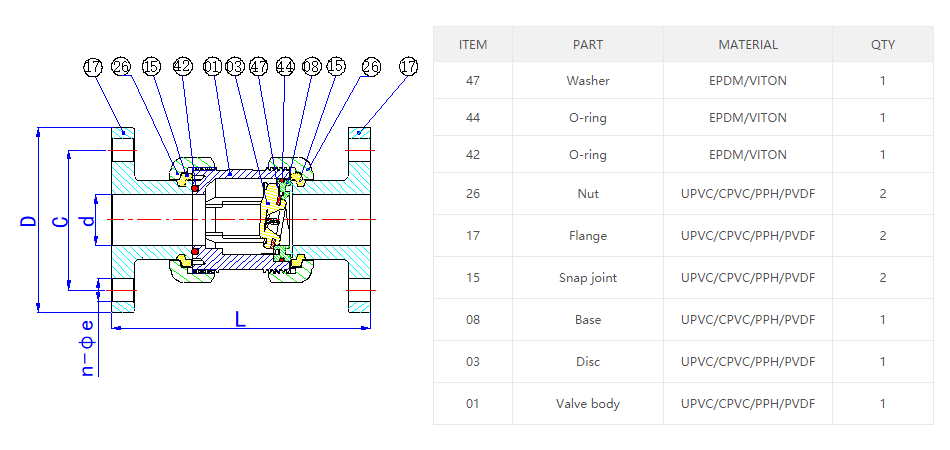

SPECIFICATIONS（UNIT:MM）
| SIZE | d | D | C | L | n-φe | ||
| ANSI | JIS | DIN | |||||
| 1/2"(15) | 15 | 95.00 | 60.50 | 70.00 | 65.00 | 126.00 | 4-15 |
| 3/4"(20) | 20 | 105.00 | 70.00 | 75.00 | 75.00 | 139.00 | 4-15 |
| 1"(25) | 25 | 125.00 | 79.20 | 90.00 | 85.00 | 160.40 | 4-19 |
| 1-1/4"(32) | 32 | 140.00 | 89.00 | 100.00 | 100.00 | 186.00 | 4-19 |
| 1-1/2"(40) | 40 | 150.00 | 98.00 | 105.00 | 110.00 | 201.00 | 4-19 |
| 2"(50) | 50 | 165.00 | 121.00 | 120.00 | 125.00 | 219.00 | 4-19 |
