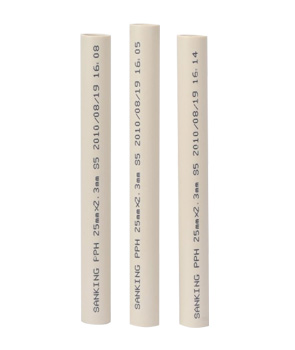

PPH Pipe
ADVANTAGES：
DESCRIPTION：
1) Material:PPH
2) Size:DN15-DN150
3) Operating temperature:0~95℃
4) Typical applications:chemical etched & plated piping systems,food processing systems,water treatment
Note:Do not recommend to service or test with compressed air or gases.
DESCRIPTION：
1) Material:PPH
2) Size:DN15-DN150
3) Operating temperature:0~95℃
4) Typical applications:chemical etched & plated piping systems,food processing systems,water treatment
Note:Do not recommend to service or test with compressed air or gases.
SPECIFICATIONS（UNIT:MM）
| Size | D | S5 | S4 | S3.2 |
| SDR 11 | SDR 9 | SDR 7.4 | ||
| thk. | thk. | thk. | ||
| DN15 | 20 | 2 | 2.3 | 2.8 |
| DN20 | 25 | 2.3 | 2.8 | 3.5 |
| DN25 | 32 | 2.9 | 3.6 | 4.4 |
| DN32 | 40 | 3.7 | 4.5 | 5.5 |
| DN40 | 50 | 4.6 | 5.6 | 6.9 |
| DN50 | 63 | 5.8 | 7.1 | 8.6 |
| DN65 | 75 | 6.8 | 8.4 | 10.3 |
| DN80 | 90 | 8.2 | 10.1 | 12.3 |
| DN100 | 110 | 10 | 12.3 | 15.1 |
| DN125 | 140 | 12.7 | 15.7 | 19.2 |
| DN150 | 160 | 14.6 | 17.9 | 21.9 |
