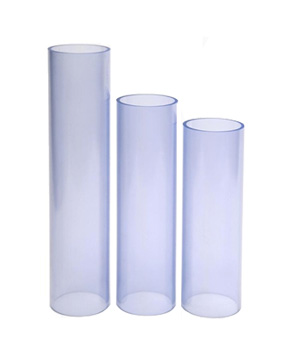

Clear PVC Pipe
ADVANTAGES：
DESCRIPTION：
1) Material:Clear PVC
2) Size:1/2''-6''
3) Standard:ASTM SCH40
4) Operating temperature:0~55℃
5) Typical applications:double containment,sight glass,aquarium,etc.
6) SCH80,PN16 or PN10 can be produced as per requirement
Note:Do not recommend to service or test with compressed air or gases.
DESCRIPTION：
1) Material:Clear PVC
2) Size:1/2''-6''
3) Standard:ASTM SCH40
4) Operating temperature:0~55℃
5) Typical applications:double containment,sight glass,aquarium,etc.
6) SCH80,PN16 or PN10 can be produced as per requirement
Note:Do not recommend to service or test with compressed air or gases.
SPECIFICATIONS（UNIT:MM）
| 尺寸 | D | 公差 | SCH40 | C-Type | ||
| T(min) | 公差 | T(min) | 公差 | |||
| 1/2″ | 21.34 | ±0.10 | 2.77 | +0.51 | 2.30 | +0.30 |
| 3/4″ | 26.67 | ±0.10 | 2.87 | +0.51 | 2.30 | +0.30 |
| 1″ | 33.40 | ±0.13 | 3.38 | +0.51 | 2.60 | +0.30 |
| 1¼" | 42.16 | ±0.13 | 3.56 | +0.51 | 3.00 | +0.30 |
| 1½" | 48.26 | ±0.15 | 3.68 | +0.51 | 3.10 | +0.30 |
| 2″ | 60.32 | ±0.15 | 3.91 | +0.51 | 3.50 | +0.30 |
| 2½" | 73.02 | ±0.18 | 5.16 | +0.61 | 4.10 | +0.34 |
| 3″ | 88.90 | ±0.20 | 5.49 | +0.66 | 4.90 | +0.40 |
| 4″ | 114.30 | ±0.23 | 6.02 | +0.71 | 5.20 | +0.45 |
| 5″ | 141.30 | ±0.25 | 6.55 | +0.79 | ||
| 6″ | 168.28 | ±0.28 | 7.11 | +0.86 | ||
| 8″ | 219.08 | ±0.38 | 8.18 | +0.99 | ||
