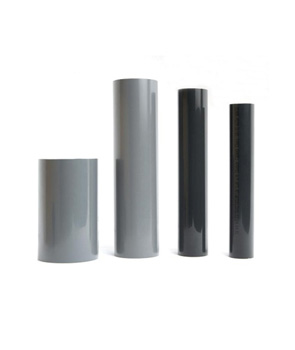

Pipe (ASTM Schedule 80 and Schedule 40)
ADVANTAGES：
DESCRIPTION：
1) Material:UPVC,CPVC
2) Size:1/2''-14''
3) Standard:ASTM SCH80/SCH40
4) Operating temperature:UPVC(0 ~ 55℃); CPVC(0 ~95℃)
5) Typical applications:industrial,sewage,water treatment,drain etc.
Note:Do not recommend to service or test with compressed air or gases.
DESCRIPTION：
1) Material:UPVC,CPVC
2) Size:1/2''-14''
3) Standard:ASTM SCH80/SCH40
4) Operating temperature:UPVC(0 ~ 55℃); CPVC(0 ~95℃)
5) Typical applications:industrial,sewage,water treatment,drain etc.
Note:Do not recommend to service or test with compressed air or gases.
SPECIFICATIONS（UNIT:MM）
|
Nominal
Size
|
Socket Type | |||||
| D(MM) | Tolerance | SCH80 | SCH40 | |||
| T(min/mm) | Tolerance | T(min/mm) | Tolerance | |||
| 1/2' | 21.34 | ±0.10 | 3.73 | +0.51 | 2.77 | +0.51 |
| 3/4' | 26.67 | ±0.10 | 3.91 | +0.51 | 2.87 | +0.51 |
| 1' | 33.40 | ±0.13 | 4.55 | +0.53 | 3.38 | +0.51 |
| 1¼' | 42.16 | ±0.13 | 4.85 | +0.58 | 3.56 | +0.51 |
| 1½' | 48.26 | ±0.15 | 5.08 | +0.61 | 3.68 | +0.51 |
| 2' | 60.32 | ±0.15 | 5.54 | +0.66 | 3.91 | +0.51 |
| 2½' | 73.02 | ±0.18 | 7.01 | +0.84 | 5.16 | +0.61 |
| 3' | 88.90 | ±0.20 | 7.62 | +0.91 | 5.49 | +0.66 |
| 4' | 114.30 | ±0.23 | 8.56 | +1.02 | 6.02 | +0.71 |
| 5' | 141.30 | ±0.25 | 9.52 | +1.14 | 6.55 | +0.79 |
| 6' | 168.28 | ±0.28 | 10.97 | +1.32 | 7.11 | +0.86 |
| 8' | 219.08 | ±0.38 | 12.70 | +1.52 | 8.18 | +0.99 |
| 10' | 273.50 | ±0.38 | 15.06 | +1.80 | 9.27 | +1.12 |
| 12' | 323.85 | ±0.38 | 17.45 | +2.08 | 10.31 | +1.24 |
| 14' | 355.60 | ±0.38 | 19.05 | +2.28 | 11.10 | +1.35 |
