Diaphragm Valve Socket Type
ADVANTAGES：
1) Materials meet drinking water standard
2) Improved designs and performance
3) 100% pure virgin material, CaCO3 free (Chalk)
4) UV resistant powder added
5) Clear body is available to check working status
6) Diaphragm is available in EPDM, PTFE & VITON
DESCRIPTION：
1) Material:UPVC,CPVC,PHP,Clear PVC,PVDF
2) Size:1/2''-4'';20mm-110mm;DN15-DN100
3) Standard:ANSI,DIN,JIS,CNS
4) Joint End:Socket
5) Working Pressure:150 PSI
6) Operating Temperature:UPVC(5~55℃);CPVC&PP(5~90℃);PVDF(-20~120℃)
7) Valve body color:UPVC(dark gray),CPVC(light gray),PPH(light yellow),Clear PVC(transparent),PVDF(ivory)
1) Materials meet drinking water standard
2) Improved designs and performance
3) 100% pure virgin material, CaCO3 free (Chalk)
4) UV resistant powder added
5) Clear body is available to check working status
6) Diaphragm is available in EPDM, PTFE & VITON
DESCRIPTION：
1) Material:UPVC,CPVC,PHP,Clear PVC,PVDF
2) Size:1/2''-4'';20mm-110mm;DN15-DN100
3) Standard:ANSI,DIN,JIS,CNS
4) Joint End:Socket
5) Working Pressure:150 PSI
6) Operating Temperature:UPVC(5~55℃);CPVC&PP(5~90℃);PVDF(-20~120℃)
7) Valve body color:UPVC(dark gray),CPVC(light gray),PPH(light yellow),Clear PVC(transparent),PVDF(ivory)

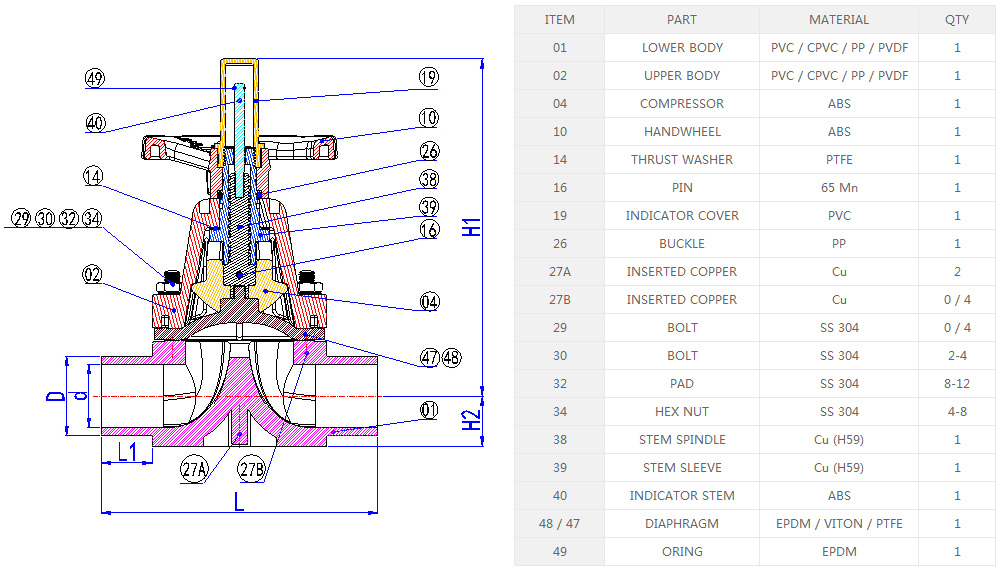

SPECIFICATIONS（UNIT:MM）
| 尺寸 | d | D | L1 | L | H1 | H2 | |||
| DIN | ANSI | JIS | CNS | ||||||
| 1/2'(15) | 15.00 | 20.00 | 21.34 | 22.00 | 22.00 | 22.50 | 100.00 | 127.50 | 12.50 |
| 3/4'(20) | 20.00 | 25.00 | 26.67 | 26.00 | 26.00 | 26.00 | 113.00 | 132.00 | 16.00 |
| 1'(25) | 25.00 | 32.00 | 33.40 | 32.00 | 34.00 | 29.00 | 132.00 | 141.40 | 20.00 |
| 1¼'(32) | 32.00 | 40.00 | 42.16 | 38.00 | 42.00 | 35.50 | 181.00 | 212.00 | 31.50 |
| 1½'(40) | 40.00 | 50.00 | 48.26 | 48.00 | 48.00 | 35.50 | 181.00 | 212.00 | 31.50 |
| 2'(50) | 50.00 | 63.00 | 60.32 | 60.00 | 60.00 | 38.00 | 221.00 | 234.60 | 37.50 |
| 2½'(65) | 65.00 | 75.00 | 73.02 | 76.00 | 76.00 | 45.00 | 251.00 | 296.00 | 45.00 |
| 3'(80) | 75.00 | 90.00 | 88.90 | 89.00 | 89.00 | 52.00 | 291.00 | 315.30 | 55.00 |
| 4'(100) | 95.00 | 110.00 | 114.30 | 114.00 | 114.00 | 61.50 | 348.00 | 334.50 |
70.00 |
