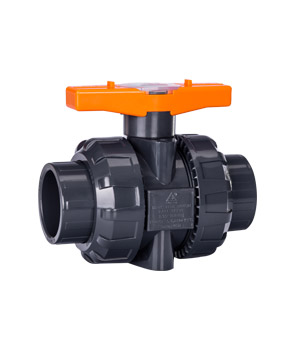

True Union Ball Valve
ADVANTAGES：
1) USA NSF approved & materials meet drinking water standard
2) Smooth opening & closing thanks to a lower torque
3)The material has been modified by nanometer,improving the pressure resistance and impact resistance
4)Raw materials add anti ultraviolet absorbent and antioxidant, improving the durability, ageing resistance
5) 100% pressure testing before leaving the factory
DESCRIPTION：
1) Material:UPVC,CPVC,PPH,PVDF,HT-CPVC
2) Size:1/2''-4'';20mm-110mm;DN15-DN100
3) Standard:ANSI,DIN,JIS,CNS
4) Joint End:Socket,Threaded(NPT,PT,BSPF),Fusion,Welding
5) Working Pressure:150 PSI
6) Operating Temperature:UPVC(5~55℃);CPVC&PPH(5~90℃);PVDF(-20~120℃);
HT-CPVC(5~90℃)
7) Handle color:red,blue,green,orange
Valve body color:UPVC(dark gray),CPVC(light gray),PPH(light yellow)
Clear PVC(transperance),PVDF(ivory),HT-CPVC(light yellow)
1) USA NSF approved & materials meet drinking water standard
2) Smooth opening & closing thanks to a lower torque
3)The material has been modified by nanometer,improving the pressure resistance and impact resistance
4)Raw materials add anti ultraviolet absorbent and antioxidant, improving the durability, ageing resistance
5) 100% pressure testing before leaving the factory
DESCRIPTION：
1) Material:UPVC,CPVC,PPH,PVDF,HT-CPVC
2) Size:1/2''-4'';20mm-110mm;DN15-DN100
3) Standard:ANSI,DIN,JIS,CNS
4) Joint End:Socket,Threaded(NPT,PT,BSPF),Fusion,Welding
5) Working Pressure:150 PSI
6) Operating Temperature:UPVC(5~55℃);CPVC&PPH(5~90℃);PVDF(-20~120℃);
HT-CPVC(5~90℃)
7) Handle color:red,blue,green,orange
Valve body color:UPVC(dark gray),CPVC(light gray),PPH(light yellow)
Clear PVC(transperance),PVDF(ivory),HT-CPVC(light yellow)

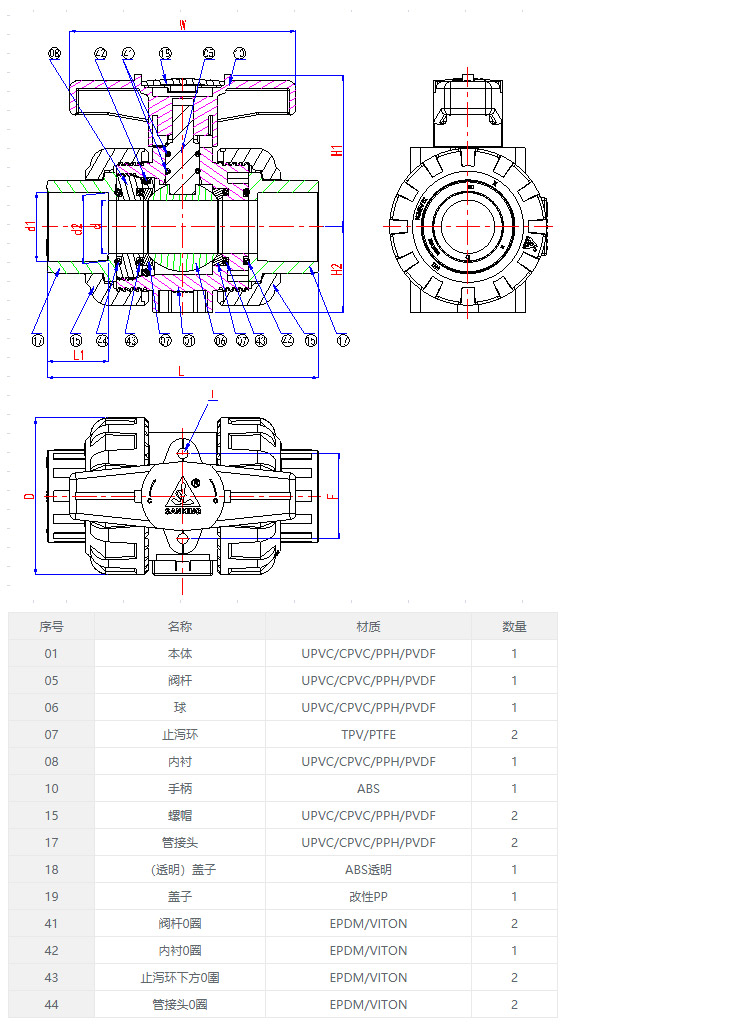

SPECIFICATIONS（UNIT:MM）
UPVC/CPVC
| 尺寸 | d | d1 | d2 | D | L | L1 | W | H1 | H2 | F | I | 操作力矩 (N·M) | ||||||
| ANSI | DIN | JIS | CNS | ANSI | DIN | JIS | CNS | |||||||||||
| 1/2"(15) | 15 | 21.54 | 20.30 | 22.40 | 22.40 | 21.23 | 20.10 | 21.73 | 21.90 | 54.00 | 107.00 | 22.30 | 84.00 | 52.50 | 27.50 | 31.00 | M5 | 2.0 |
| 3/4"(20) | 20 | 26.87 | 25.30 | 26.45 | 26.40 | 26.57 | 25.10 | 25.69 | 25.90 | 63.00 | 115.00 | 25.50 | 90.00 | 59.00 | 32.00 | 33.00 | M5 | 2.5 |
| 1"(25) | 25 | 33.65 | 32.30 | 32.55 | 34.50 | 33.27 | 32.10 | 31.70 | 33.90 | 73.50 | 129.00 | 28.60 | 106.00 | 67.50 | 37.25 | 40.00 | M5 | 4.0 |
| 1¼"(32) | 32 | 42.42 | 40.30 | 38.60 | 42.50 | 42.04 | 40.10 | 37.65 | 41.90 | 84.50 | 144.00 | 32.00 | 116.00 | 77.50 | 42.75 | 52.00 | M8 | 5.0 |
| 1½"(40) | 40 | 48.56 | 50.30 | 48.70 | 48.60 | 48.11 | 50.10 | 47.74 | 47.90 | 98.00 | 161.00 | 35.00 | 128.00 | 90.00 | 50.00 | 52.00 | M8 | 7.5 |
| 2"(50) | 50 | 60.63 | 63.30 | 60.80 | 60.60 | 60.17 | 63.10 | 59.78 | 59.90 | 118.00 | 173.00 | 38.00 | 140.00 | 106.00 | 60.00 | 70.00 | M8 | 10 |
PPH/PVDF
| 尺寸 | d | d1 | d2 | D | L | L1 | W | H1 | H2 | F | I | 操作力矩 (N·M) |
| DIN | DIN | |||||||||||
| 1/2"(15) | 15 | 19.20 | 19.00 | 54.00 | 105.00 | 15.00 | 84.00 | 52.50 | 27.50 | 31.00 | M5 | 2.0 |
| 3/4"(20) | 20 | 24.20 | 23.90 | 63.00 | 111.00 | 16.50 | 90.00 | 59.00 | 32.00 | 33.00 | M5 | 2.5 |
| 1"(25) | 25 | 31.10 | 30.90 | 73.50 | 124.00 | 18.50 | 106.00 | 67.50 | 37.25 | 40.00 | M5 | 4.0 |
| 1¼"(32) | 32 | 39.00 | 38.80 | 84.50 | 138.00 | 21.00 | 116.00 | 77.50 | 42.75 | 52.00 | M8 | 5.0 |
| 1½"(40) | 40 | 48.90 | 48.70 | 101.00 | 166.00 | 24.00 | 128.00 | 90.00 | 50.00 | 52.00 | M8 | 7.5 |
| 2"(50) | 50 | 61.90 | 61.60 | 123.00 | 185.00 | 28.00 | 140.00 | 106.00 | 60.00 | 70.00 | M8 | 10 |
