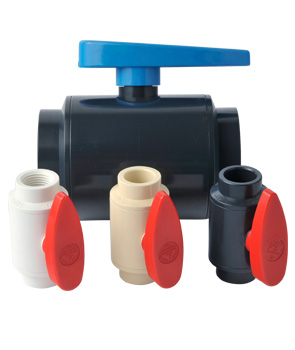

New Compact Ball Valve
ADVANTAGES：
1) Enhanced hermeticity
2) Smooth opening and closing thanks for a lower torque
3) Replaceable ergonomic handle
4) The material has been modified by nanometer,improving the pressure resistance and impact resistance.
5)Raw materials add anti ultraviolet absorbent and antioxidant, improving the durability, ageing resistance
6) 100% pressure testing before leaving the factory
DESCRIPTION：
1) Material:UPVC,CPVC,HT-CPVC,PVDF,PPH
2) Size:1/2'-4'
3) Joint End:Socket,Threaded NPT,BSPF and PT
4) Standard:ANSI,DIN,JIS,CNS
5) Working Pressure:150 PSI
6) Operating Temperature:UPVC(0~45℃);PPH、CPVC&HT-CPVC(0~95℃)；
PVDF(-40~150℃)
7) Handle color:red,blue
Valve body color:UPVC(dark gray/white),CPVC(light gray),HT-CPVC(light yellow)，PPH( light yellow),PVDF(ivory)
1) Enhanced hermeticity
2) Smooth opening and closing thanks for a lower torque
3) Replaceable ergonomic handle
4) The material has been modified by nanometer,improving the pressure resistance and impact resistance.
5)Raw materials add anti ultraviolet absorbent and antioxidant, improving the durability, ageing resistance
6) 100% pressure testing before leaving the factory
DESCRIPTION：
1) Material:UPVC,CPVC,HT-CPVC,PVDF,PPH
2) Size:1/2'-4'
3) Joint End:Socket,Threaded NPT,BSPF and PT
4) Standard:ANSI,DIN,JIS,CNS
5) Working Pressure:150 PSI
6) Operating Temperature:UPVC(0~45℃);PPH、CPVC&HT-CPVC(0~95℃)；
PVDF(-40~150℃)
7) Handle color:red,blue
Valve body color:UPVC(dark gray/white),CPVC(light gray),HT-CPVC(light yellow)，PPH( light yellow),PVDF(ivory)

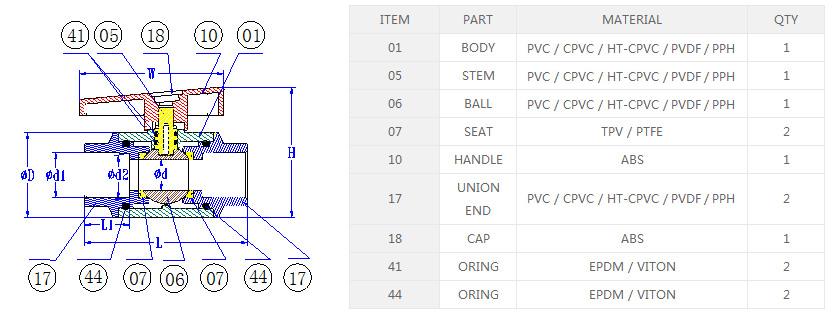

SPECIFICATIONS（UNIT:MM）
| SIZE | d | d1 | d2 | D | L | L1 | H | W | operating torque(N·M) | ||||||
| ANSI | DIN | JIS | CNS | ANSI | DIN | JIS | CNS | ||||||||
| 1/2"(15) | 15 | 21.54 | 20.30 | 22.40 | 22.40 | 21.23 | 20.00 | 17.75 | 17.90 | 44.00 | 79.00 | 22.00 | 66.00 | 70.00 | 2.00 |
| 3/4"(20) | 20 | 26.87 | 25.31 | 26.45 | 26.45 | 26.57 | 25.00 | 25.69 | 25.90 | 52.20 | 106.40 | 31.50 | 78.00 | 80.00 | 2.50 |
| 1"(25) | 25 | 33.65 | 32.33 |
32.55 |
32.55 | 33.27 | 32.00 | 31.70 | 34.90 | 59.00 | 116.20 | 35.00 | 88.00 | 90.00 | 4.00 |
| 1¼"(32) | 32 | 42.42 | 40.30 | 38.60 | 38.60 | 42.04 | 40.10 | 37.65 | 41.90 | 70.00 | 125.70 | 35.00 | 102.00 | 100.00 | 5.00 |
| 1½"(40) | 40 | 48.56 | 50.30 | 48.70 | 48.70 | 48.11 | 50.10 | 47.74 | 47.90 | 81.00 | 136.50 | 37.00 | 121.50 | 130.00 | 6.00 |
| 2"(50) | 50 | 60.63 | 63.30 | 60.80 | 60.80 | 60.17 | 63.10 | 59.78 | 59.90 | 98.00 | 149.30 | 38.00 | 137.00 | 130.00 | 6.00 |
| 2½"(65) | 65 | 73.38 | 75.40 | 76.60 | 76.60 | 72.85 | 75.00 | 75.68 | 75.90 | 122.00 | 197.50 | 53.00 | 160.30 | 150.00 | 8.00 |
| 3"(80) | 75 | 89.31 | 90.42 | 89.60 | 89.60 | 88.70 | 89.98 | 88.55 | 88.90 | 138.00 | 208.40 | 51.00 | 192.50 | 200.00 | 15.00 |
| 4"(100) | 97 | 114.76 | 110.52 | 114.70 | 114.70 | 114.10 | 109.98 | 113.60 | 113.80 | 177.00 | 254.00 | 60.00 | 238.50 | 260.00 | 40.00 |
